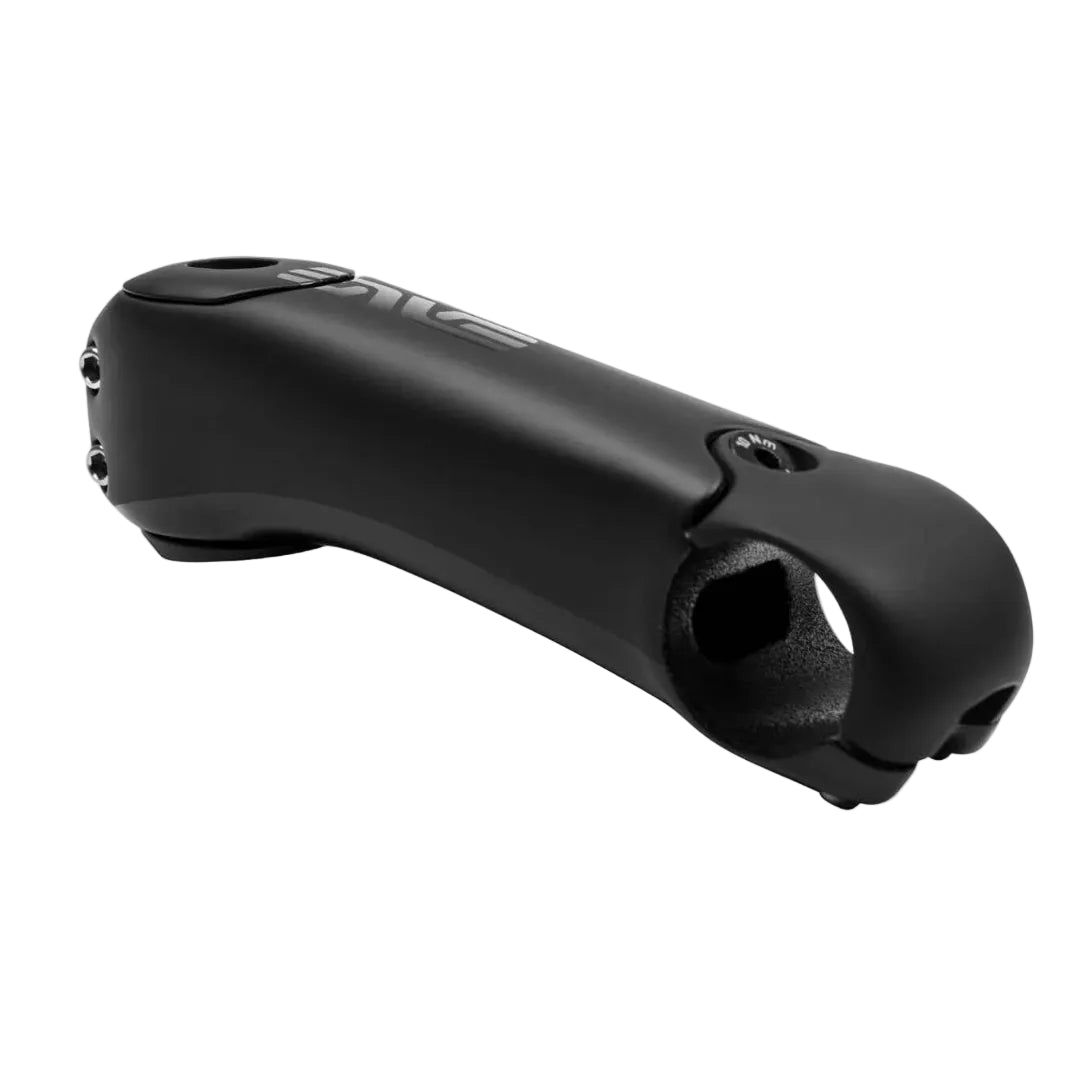

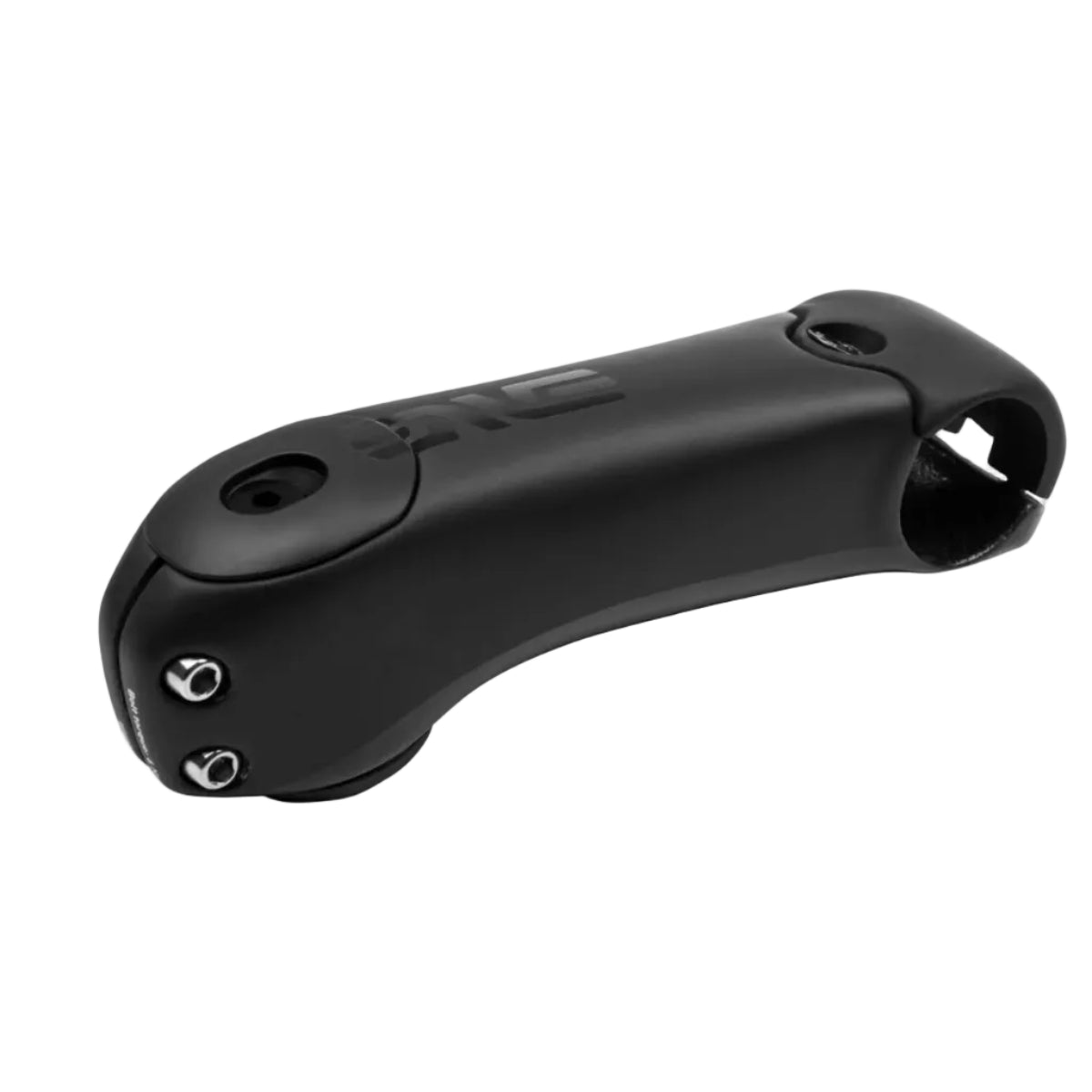

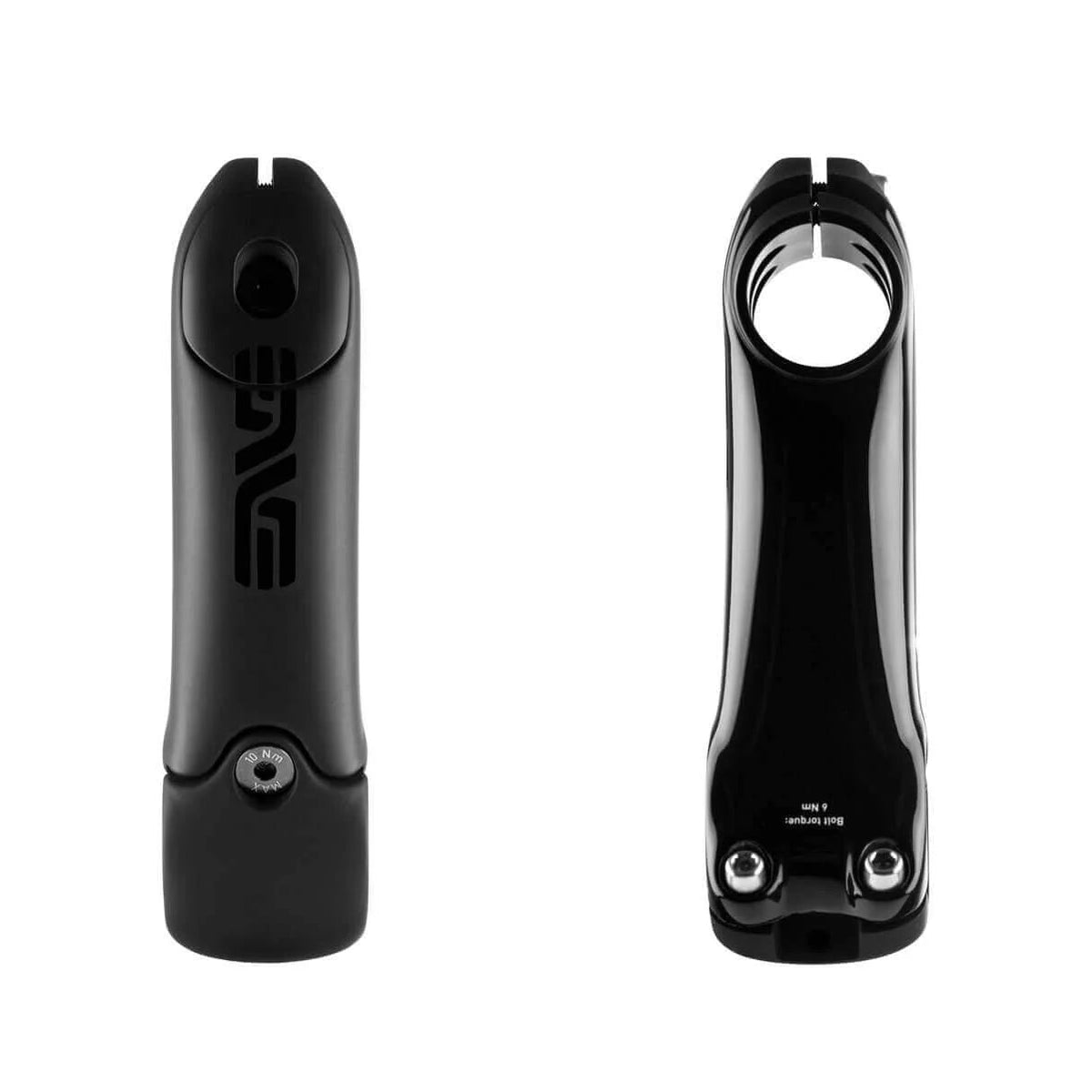

An aerodynamically honed carbon stem with adjustable length and angle to optimize your position. Developed with Team Dimension Data, it links handlebar to fork for refined ride response and confident control.
The stem shape and ability to eliminate headset spacers allow cleaner airflow at the front of the bike. Its adjustable position helps riders refine their fit.
Important: This stem is intended for negative drop only. It cannot be flipped or reversed for a positive rise.
Specifications
Material: Carbon

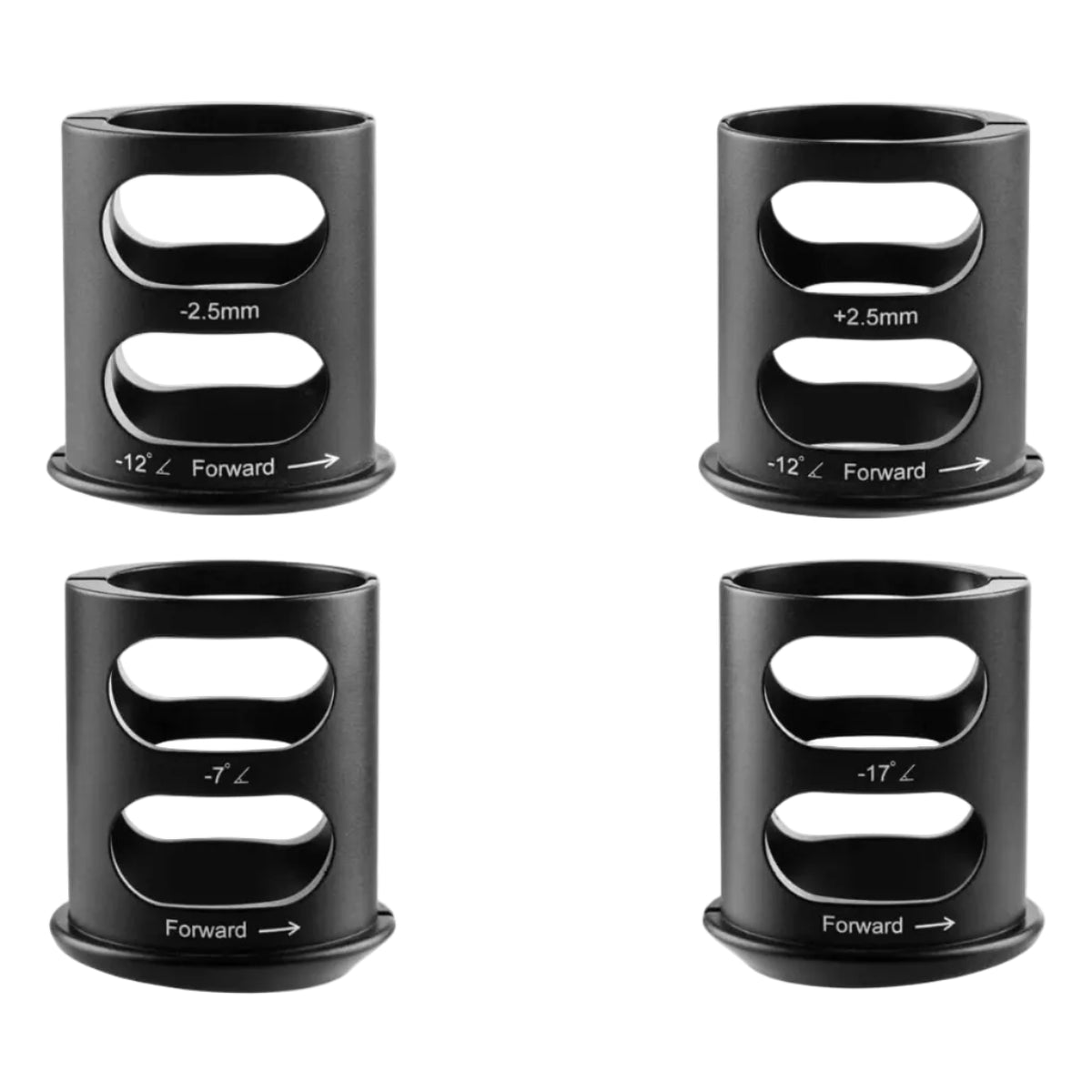

Lengths: 90, 100 and 110mm, adjustable +/-2.5mm with the -12° shim
Rise: -12° fixed; -17° or -7° with angle shim
Handlebar clamp diameter: 31.8mm
Steerer clamp diameter: 1 1/8 inch
Faceplate material: Aluminum
Hardware material: Titanium
Stack height: 42.5mm with length shim; 45.5mm with angle shim
